FEM / DIN — GA package
FEM / DIN — GA 成套
General arrangement with span, SWL, lifting height, hook approaches, runway loads and duty class callouts. Revision-controlled before fabrication.
总图含跨度、SWL、起升高度、钩接近、轨道载荷与工作级别标注。投产前受控改版。
Engineering / Standards
工程 / 标准
Standards = drawing capability, not market limits.
标准 = 图纸能力，不是市场边界。
We engineer to FEM/DIN principles. Documentation can be configured toward CE, ASME/CMAA, AS or project specs for export markets. Cases below are labelled EXAMPLE — illustrative workflows, not customer references or certificate claims.
我们按 FEM/DIN 原则设计。文件可面向 CE、ASME/CMAA、AS 或项目规范配置以服务出口。以下案例均标注 EXAMPLE——示意流程，非客户背书或证书声明。
How a typical export package is structured
典型出口成套如何组织
CE — configuration path
CE — 配置路径
Spec → design & risk analysis → technical file support → Declaration of Conformity path as required by the project. Local filing stays with partner/client where applicable.
规范 → 设计与风险分析 → 技术文件支持 → 按项目要求的符合性声明路径。本地申报由伙伴/客户承担（如适用）。
ASME / CMAA & AS notes
ASME / CMAA 与 AS 说明
Drawing notes, load ratings and documentation structure can be aligned to ASME/CMAA or AS expectations when the enquiry specifies them. Exact scope confirmed per order.
当询盘指定时，图纸注释、额定载荷与文件结构可对齐 ASME/CMAA 或 AS 期望。精确范围按订单确认。
What appears on a controlled GA
受控 GA 上通常有什么
- Span, lifting height, hook approaches left/right
- 跨度、起升高度、左右钩接近
- SWL, duty class, speed ranges
- SWL、工作级别、速度范围
- Wheel loads / runway reactions
- 轮压 / 轨道反力
- Power feed concept & control station
- 供电方案与操作站
- Revision block and project code preference
- 改版栏与项目规范偏好

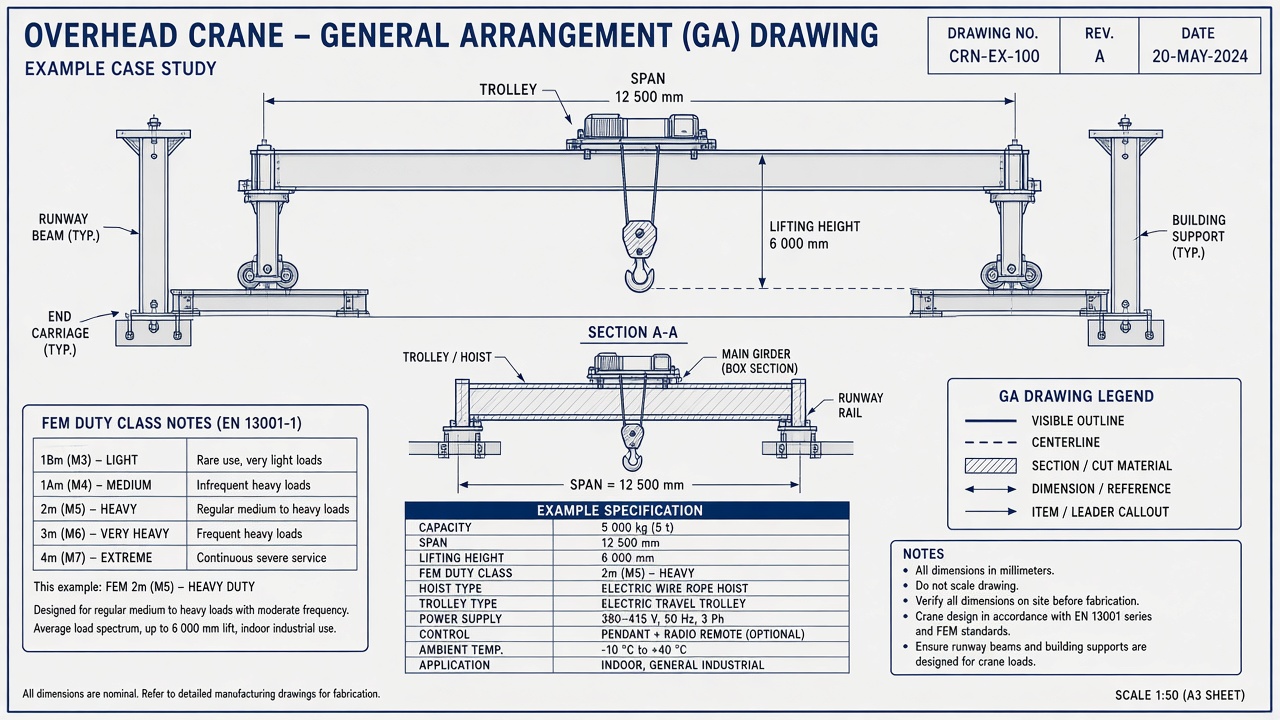

Illustration labelled EXAMPLE — schematic for communication, not a released customer drawing.
标注 EXAMPLE 的示意图——用于沟通，非已放行的客户图纸。
Clear language on codes
关于规范的清晰表述
What we mean
我们指的是
“EU / US / AU codes” = ability to configure drawings and documentation for those markets when the project requires it.
“欧/美/澳规范”= 在项目需要时，为这些市场配置图纸与文件的能力。
What we do not claim
我们不声称
We do not claim a fake EU brand, Demag equivalence, or empty “globally certified” marketing. Certificates and filings follow project scope and local rules.
我们不宣称假欧洲品牌、Demag 等价，或空泛的“全球认证”。证书与申报随项目范围与当地规则。
Partner role
伙伴角色
McVern supplies the drawing & doc package and FAT support. Local installation and statutory filing stay with the regional partner / client as required.
McVern 提供图纸文件包与 FAT 支持。本地安装与法定申报由区域伙伴/客户按要求承担。
Enquiry → proposal
询盘 → 方案
Duty & code checklist → GA / load data → firm quote & lead time on revision-controlled drawings.
工况与规范清单 → GA/载荷数据 → 基于受控图纸的正式报价与交期。
